Contents

• Aluminum platform (6063) + 22MM height aluminum black heat sink + large heat sink base
  • 85 degrees Celsius

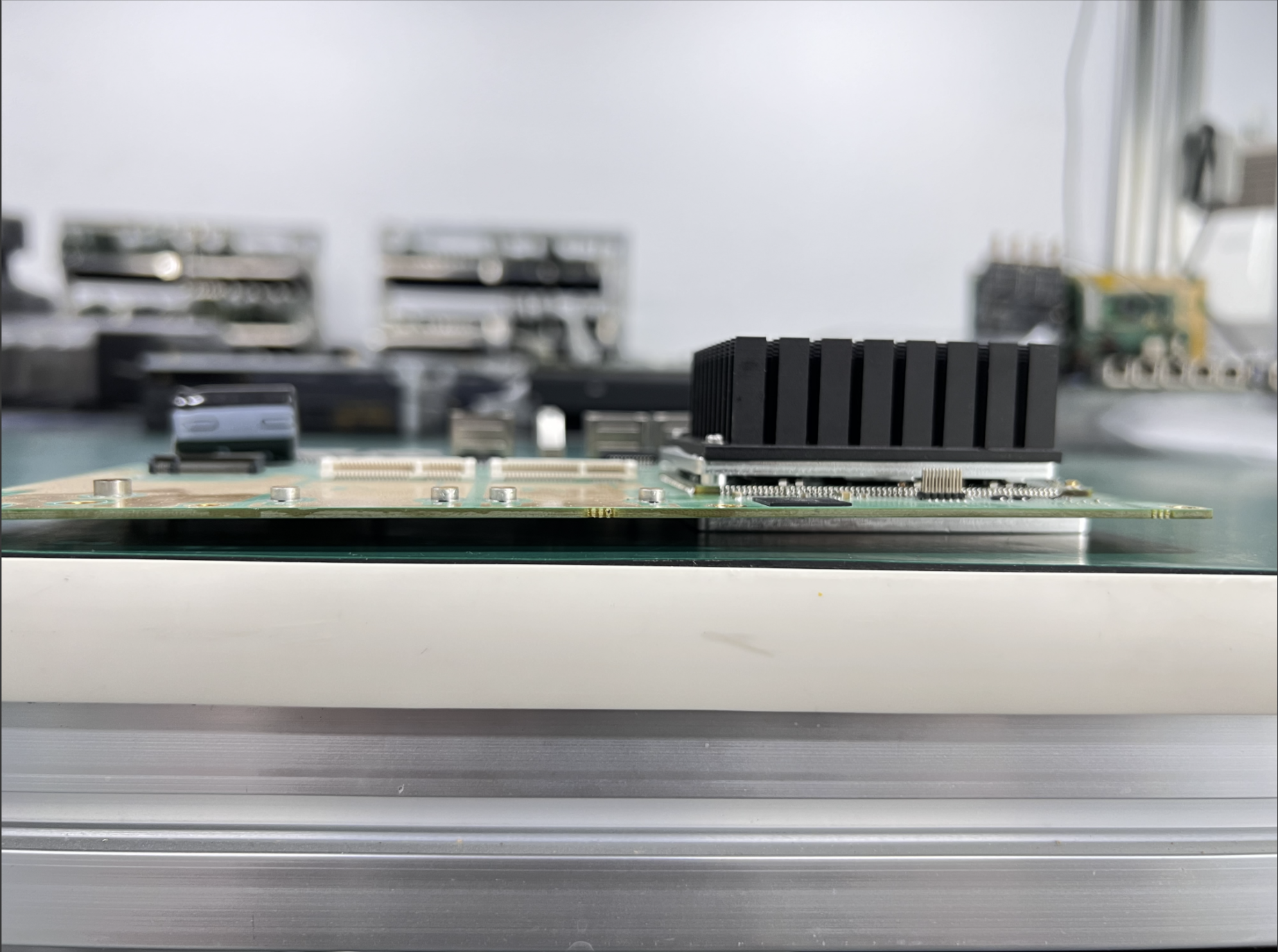

Aluminum platform (6063) + 22MM height aluminum black heat sink + large heat sink base

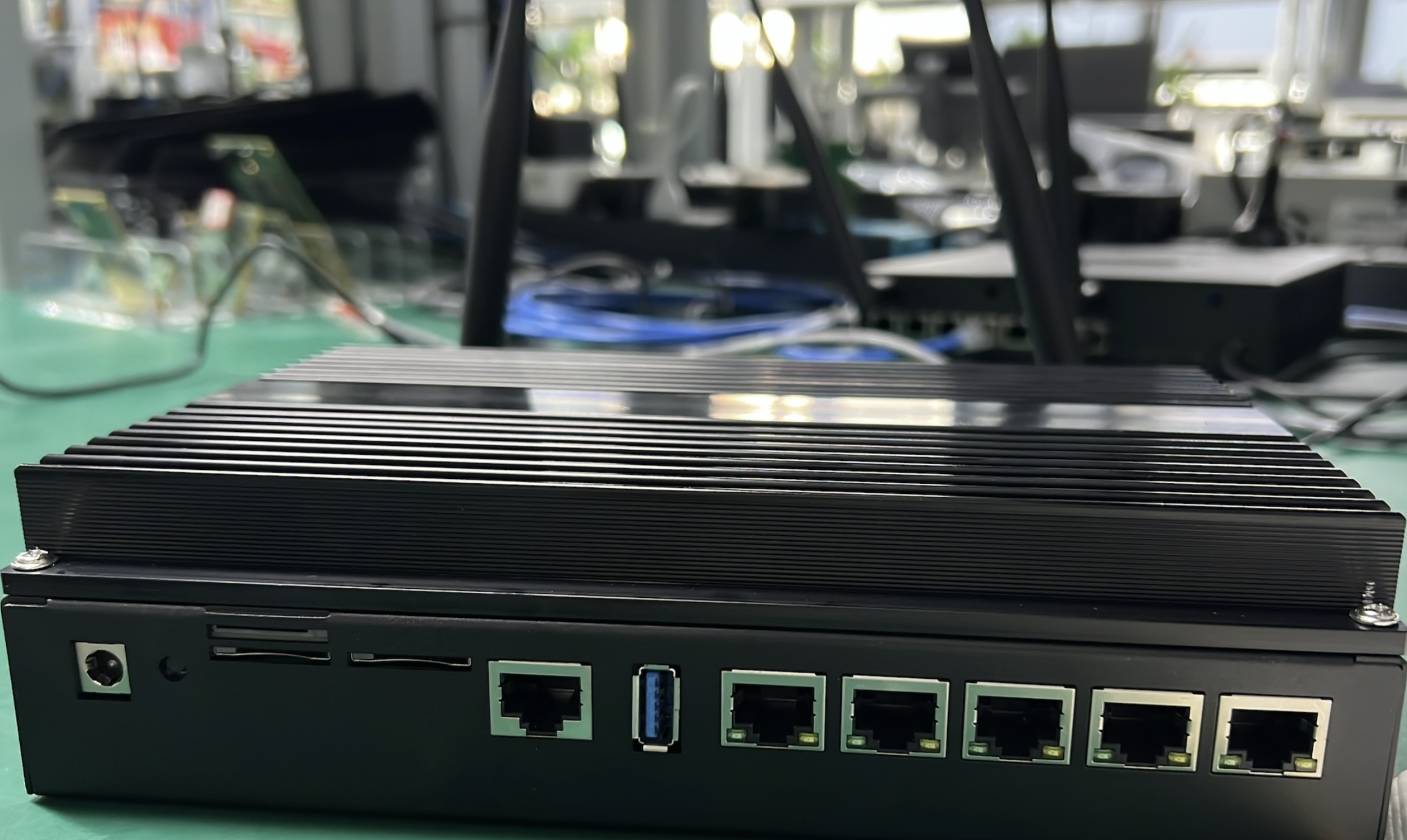

• The front and back of the module are made of CNC aluminum blocks, a 22MM high black heat sink is installed on the front of the shell, and the aluminum platform on the back of the module is in close contact with the shell through silicone grease
• When the module CPU temperature reaches 115 degrees Celsius, the protection mechanism will be triggered and the module will restart.

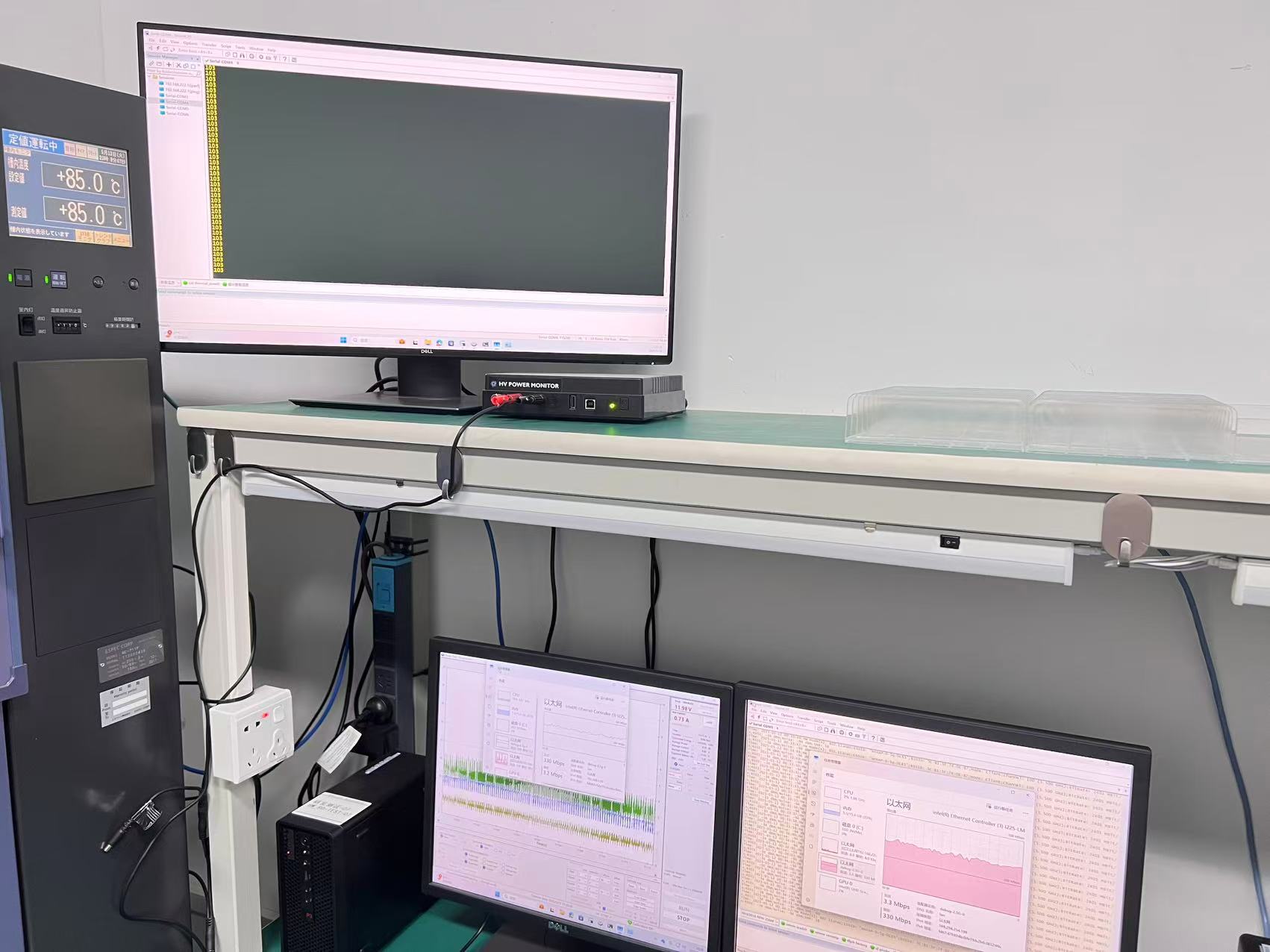

85 degrees Celsius

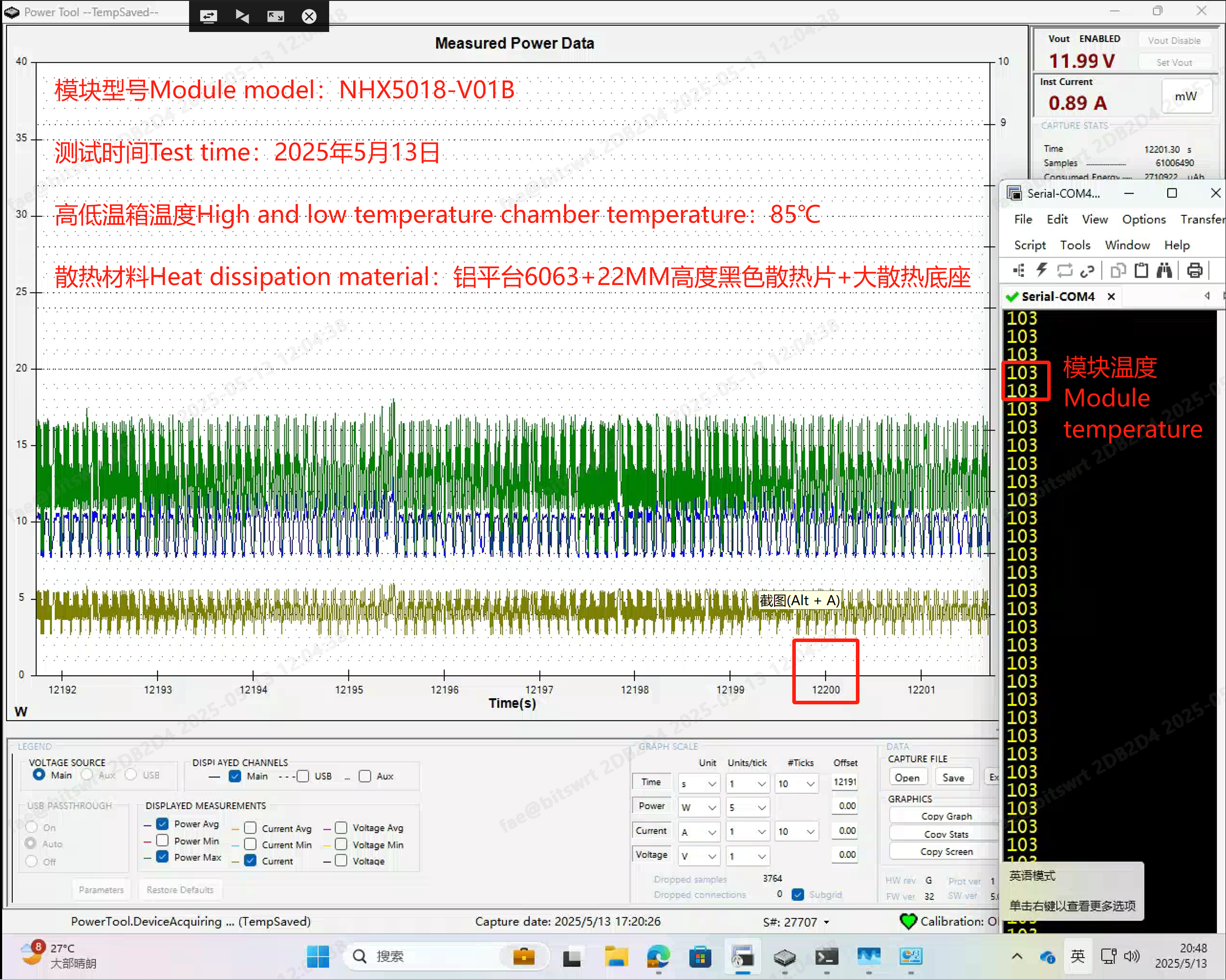

• Test results: iperf test, CPU temperature is 103 degrees Celsius, it can work normally, and it has not been restarted

---
